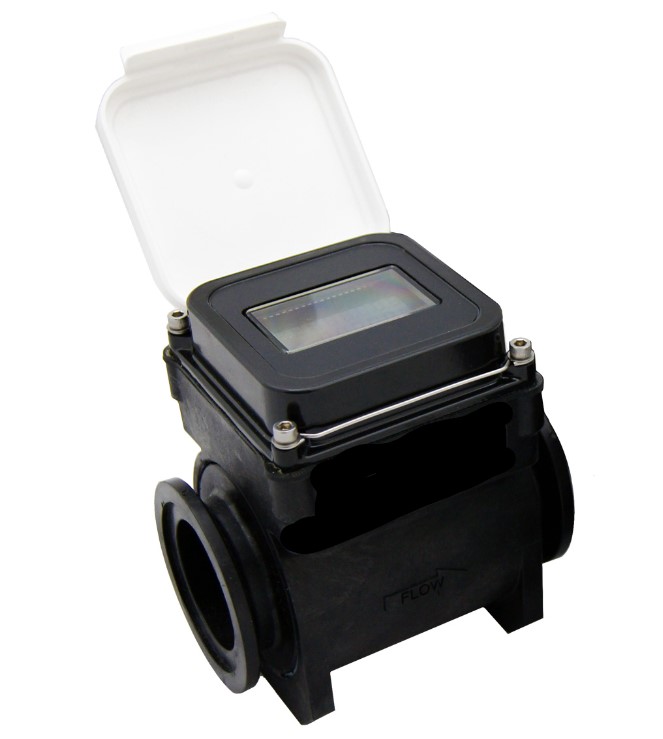

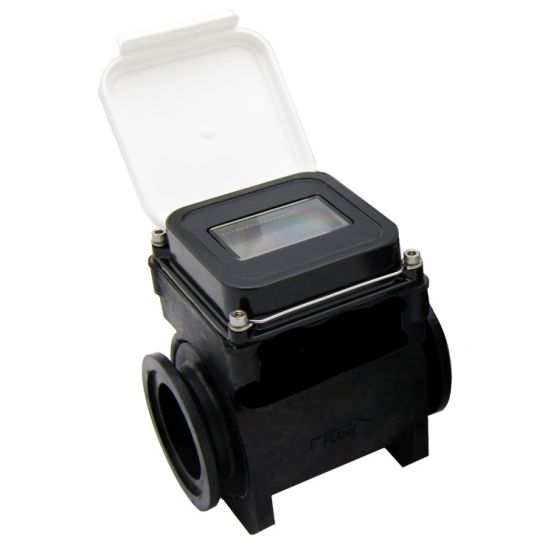

Netafim WMR Water Meter - 2-Inch - 10 Gallons per Pulse

WMP-Series

• Plastic Bodied Magmeter
• No moving parts
• Minimal straight pipe required
• Battery powered
• Corrosion resistant
• Built-in rate & total indicator
• Simple as a mechanical meter
• Made in America
• ISO Certified

The WMP-Series is a full-bore, plastic-bodied electromagnetic flow meter designed for flow and usage monitoring applications in 1, 2 and 3 inch pipe. The polypropylene flow tube offers corrosion resistance to a wide range of chemicals and fertilizers. It is light weight and easy to install or remove from the pipe for inspection.

With no moving parts, the magmeter permits  nobstructed flow, minimizing flow disturbances and straight pipe requirements. The WMPSeries can be used in piping  configurations where there is little space between the meter and an elbow or valve. The WMP-Series is resistant to wear from  sand and debris found in ground or surface water. Since there are no bearings or propeller to wear out, maintenance and repair costs are kept to a minimum.

A hinged polyethylene cover is included that protects from dust and UV rays, while  permitting easy access to the flow rate and total display. The electronics housing can be fitted with cross-drilled screws and seal wire for tamper-evidence. Flow rate and total can be displayed in a variety of units, customer-selected and factory-set.

The WMP101 is externally powered via a 5-pin connector cable (20ft/6m) which also provides pulse output for use with a variety of Seametrics and other displays and controls for remote reading, data logging, pulse-toanalog conversion, and telemetry applications.

The WMP104 is a battery-operated unit for use when pulse output is not required. The standard batteries are user replaceable with an approximate 1 year life depending on usage. An extended battery life option offers an estimated 2-4 year life depending on usage.

In the event of DC power loss, or when changing batteries, the WMP will retain internal settings and flow total.
