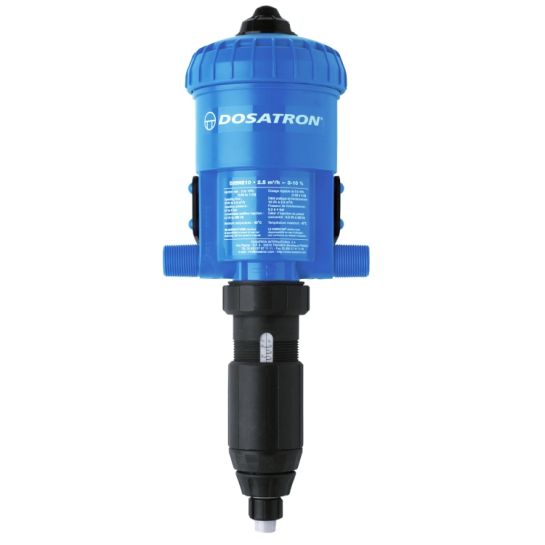

Dosatron Nutrient Delivery System
Currently, there are no documents available for this product.
-
WDOS260 Dosatron D14MZ2 - Viton Seals - 14 GPM - 1:500 to 1:50 Dilution Rate - (7.5 to 75 mL/Gallon) - 3/4-Inch -
WDOS270 Dosatron Nutrient Delivery System - Viton Seals - 14 GPM 1:3000 to 1:333 - D14MZ3000VFBPHY -
WDOS705 Dosatron D40MZ2BPVFHY - Viton Seals - 40 GPM - 1:500 to 1:50 Dilution Rate (7.5 to 75 mL/Gallon) - 1-1/2-Inch -
WDOS395 Dosatron D40MZ3000 - Viton Seals - 40 GPM - 1:3000 to 1:500 Dilution Rate (1.25 ml to 7.5 ml/gallon) - 1-1/2-Inch
Details
DOSATRON CHEMICAL INJECTORS ARE WATER-POWERED SO NO ELECTRICITY IS NEEDED.
Dosatron water-powered, non-electric chemical injectors are the easiest, most reliable way to accurately inject chemicals into water lines. These water-powered proportional dosing pumps make it easier than ever to administer the right doses quickly and safely.
When water enters the injector, it triggers the hydraulic motor, which begins moving up and down inside the body of the injector. On the up stroke, the Dosatron draws fluid up from the concentrate tank in an action similar to a hypodermic syringe. On the down stroke, the concentrate is displaced into the mixing chamber, where it is mixed with the water flowing through the unit. Then the water-and-chemical mixture is discharged into the water lines.
- Water Flow
- Water enters the Dosatron body
- Concentrate is pulled up into the Dosatron
- Concentrate mixes with the incoming water
- Blended solution is discharged into the water line
