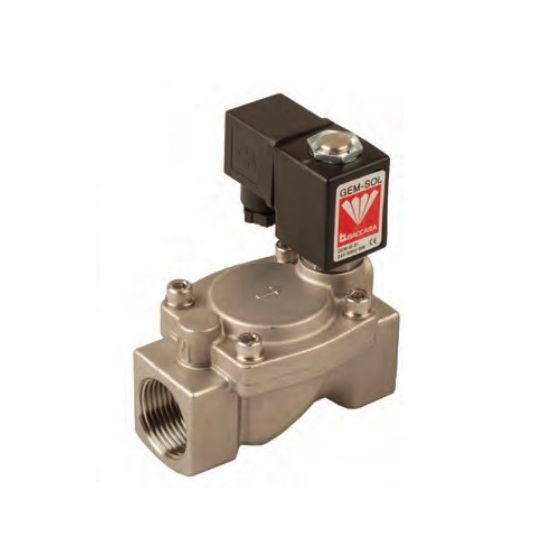

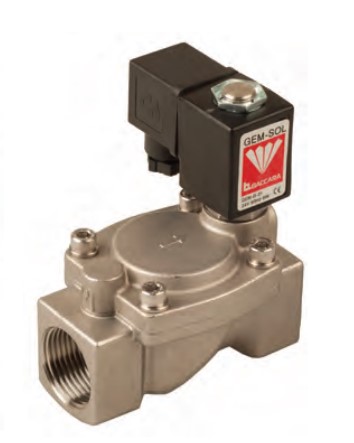

Aquagation Stainless Steel 2-Way Valve - Normally Closed w/ LED - 220V - 1-Inch NPT

TECHNICAL DATA

Function

2 Way NC, NO

Ports size 1/4", 3/8", 1/2", 3/4", 1" BSP & NPT

Pressure Range & Kv (l/min)

See table

* Minimum pressure differential of 0.3 or 0.5 is required

Temperature Range

Fluid: -10ºC to 80ºC (no freezing)

Ambient: -10ºC to 50ºC

Materials In Contact w/ Media

Manual override: NC/NO - Brass screw

Main Valve: Brass, Stainless Steel AISI 316

Solenoid Operator: Stainless Steel AISI 300 & 400 series

Seals: NBR, FKM, EPDM

Coil Voltage

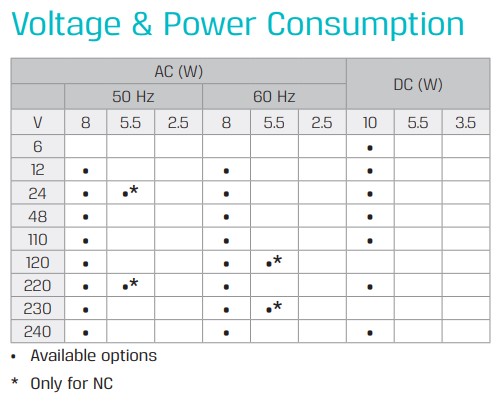

Voltage and power consumption - see table

All Baccara coil voltages are ± 10% of nominal

Standard Protection Class

IP65 with connector

* Option: IP68 (please refer to GEM-BP Coil)
