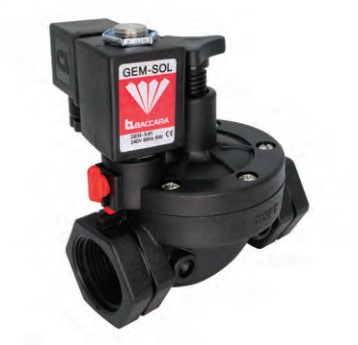

Aquagation Plastic 2-Way Valve - Normally Closed w/ LED - 220V - 1-Inch NPT
Currently, there are no documents available for this product.
-
WAQ106 Aquagation Plastic 2-Way Valve - Normally Closed w/ LED - 220V - 1-Inch NPT
Details
TECHNICAL DATA
Function
2-Way NC, NO
Ports Size
3/4", 1", 1-1/2", 2" BSPT & NPT
Connection
Female BSPT or NPT thread
Pressure Range
0.3 to 10 bar
Temperature Range
Fluid: 5ºC to 50ºC (no freezing)
Ambient: -10ºC to 50ºC
Solenoid
GEM-SOL® 3/4" UNEF, 2 Way
NC or NO solenoids. All voltages
Materials In Contact w/ Media
Manual override:
Plastic (Reinforced Nylon)
Body & cover:
Plastic (Reinforced Nylon)
Spring:
Stainless Steel AISI 302
Diaphragm:
NR : 3/4", 1"
EPDM : 1-1/2", 2"
Seals:
NBR
Screws:
Stainless Steel AISI 304
Solenoid:
Stainless Steel AISI 300 & 400 series
Coil Voltage
Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal
| Size | Orifice (mm) | Kv (l/m) |
| 3/4-Inch | 27 | 140 |
| 1-Inch | 27 | 200 |
| 1-1/2-Inch | 55 | 520 |
| 2-Inch | 55 | 600 |
Standard Protection Class
IP65 with connector
* Option: IP68 (please refer to GEM-BP Coil)
