SpotOn SC-2 Digital Sprayer Calibrator - Measure Flow Rate, Application Rate, and Tip Wear

Availability: In stock

Skip to the beginning of the images gallery

GINN021 SpotOn SC-2 Digital Sprayer Calibrator - Measure Flow Rate, Application Rate, and Tip Wear

Login to view price

Details

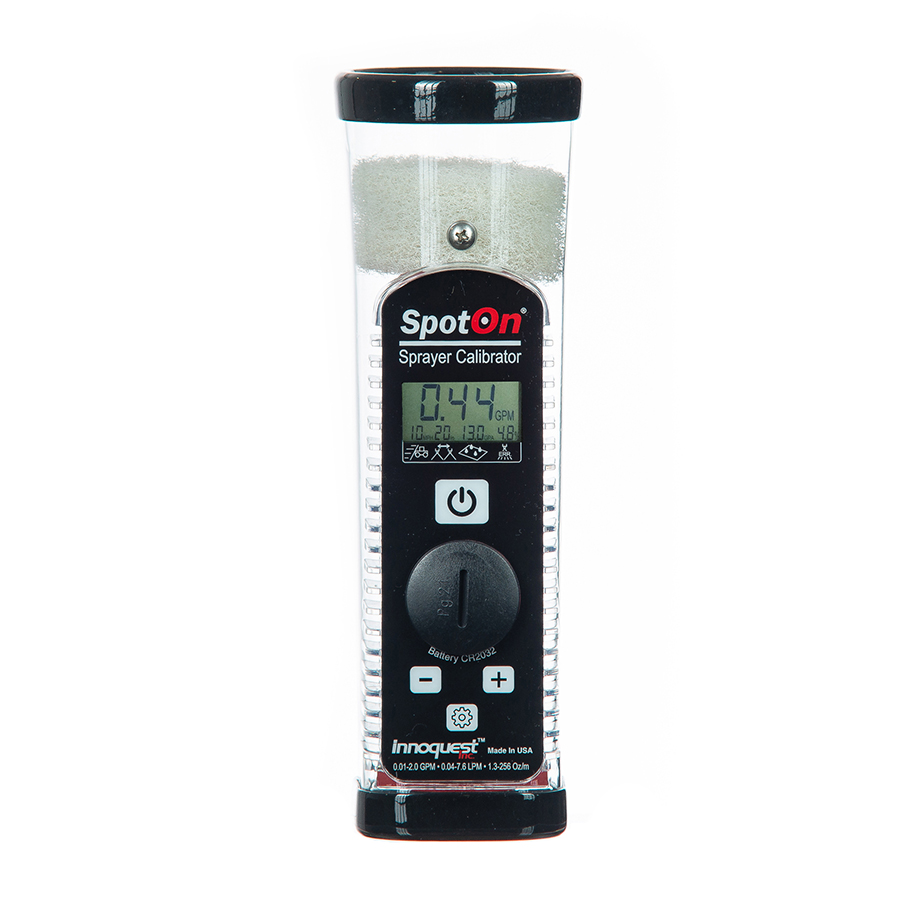

The SpotOn® Sprayer Calibrator Model SC-2 is a precision tool designed to provide quick and accurate flow rate measurements for individual sprayer nozzles, particularly suited for flow rates below 2.25 GPM, typical of herbicide and insecticide applications. This calibrator simplifies the process of sprayer calibration, ensuring optimal performance and accurate chemical application.

Key Features:

Automatic Calculations: Displays tip flow rate in GPM, LPM, and oz/min, as well as tip wear in % and application rate in GPA/LPH (after entering speed and nozzle spacing). No additional calculations or app downloads are required.
Fast Operation: Provides readings in approximately 10 seconds per tip, making it efficient for field use.
Tip Wear Detection: Quickly identifies worn spray nozzle tips, recommending replacement when flow rate exceeds that of a new tip by 10%.
Accurate Flow Measurement: Ensures precise calibration of high-tech sprayers by measuring true tip flow rates.

Applications:

Calibrating sprayers for herbicide and insecticide applications.
Identifying worn or malfunctioning spray tips to maintain consistent application rates.
Ensuring accurate chemical application for optimal crop protection and efficiency.

Technical Specifications:

Flow Rate Range:
- 0.02 – 2.25 GPM.
- 0.08 – 8.52 LPM.
- 3 – 288 oz/min.
Accuracy: +/- 2% or 1 digit.
Resolution:
- 0.01 GPM.
- 0.01 L/min.
- 1 oz/min.
Fluid Compatibility: Water and water-based solutions only.
Battery: CR2032 included (3-year battery life).
Dimensions: 3” (7.6 cm) diameter x 8.75” (22 cm) tall.
Weight: 0.6 lbs (272 g).

The SpotOn® Sprayer Calibrator Model SC-2 is an essential tool for agricultural professionals, offering reliable and efficient sprayer calibration in a compact and user-friendly design. Its advanced features ensure accurate chemical application, helping to optimize crop protection and resource usage.
