Netafim NutriSolve Fertilizer-Dissolving System

NutriSolve Fertilizer Dissolving System
Precision Hydraulic Mixing for Efficient Fertigation

Overview:
The NutriSolve system is an advanced fertilizer dissolving solution that uses hydraulic water pressure for mixing, eliminating the need for electricity or mechanical agitators. It ensures accurate and consistent fertilizer concentration for optimal crop nutrition in irrigation systems while reducing labor and maintenance requirements.

Key Features and Benefits:

• Labor Savings – Minimizes manual mixing efforts and lowers operational costs.

• Precision Mixing – Hydraulic water pressure delivers uniform fertilizer solution for improved crop nutrition.

• Easy Maintenance – Only requires periodic filter cleaning with no complex mechanical parts.

• Flexible Operation – Can be operated manually or set to automatic mixing mode.

• Hydraulic Efficiency – Uses water pressure for mixing, reducing energy consumption.

• Large Capacity – Dissolving tank holds up to 423 gallons (1600 liters) for high-volume operations.

System Components:

• Fertilizer Dosing Unit – Ensures precise fertilizer injection into the irrigation line.

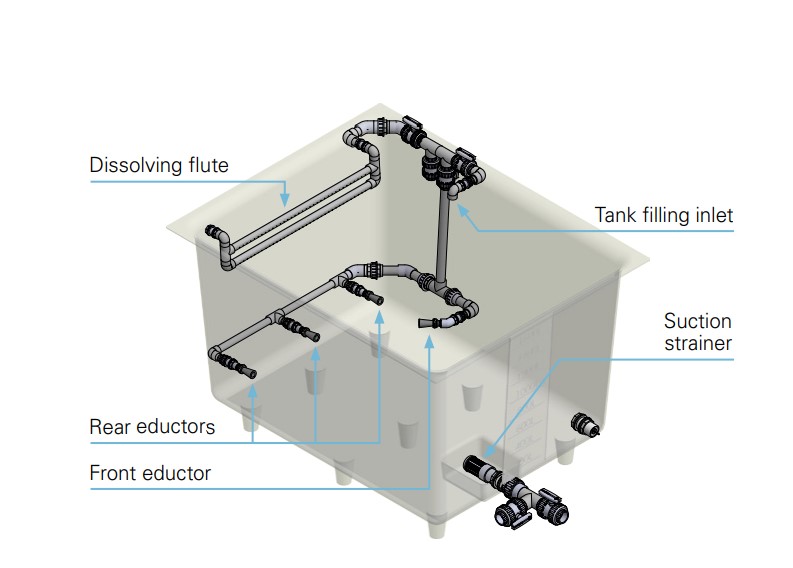

• Dissolving Tank – Heavy-duty tank designed for efficient hydraulic mixing.

• Valve Bridge – Controls flow and mixing process with minimal manual intervention.

• Durable Construction – Made from ASTM-compliant materials for long-term reliability.

Technical Specifications:

• Tank Capacity: 423 gallons (1600 liters)

• Valve Bridge Weight: 154.5 lbs (approx.)

• Dissolving Tank Weight: 187.5 lbs (approx.)

• Dimensions:

  • Height: Adjustable (approx. 36”–67”)

  • Width: 30”–53”

  • Depth: 37.5”–43.5

Application:
Ideal for agricultural operations, greenhouses, and large-scale irrigation systems requiring efficient and precise fertilizer dissolution.

Note: Weights and dimensions are approximate and may vary slightly. Tank height can be adjusted via leg extensions.
