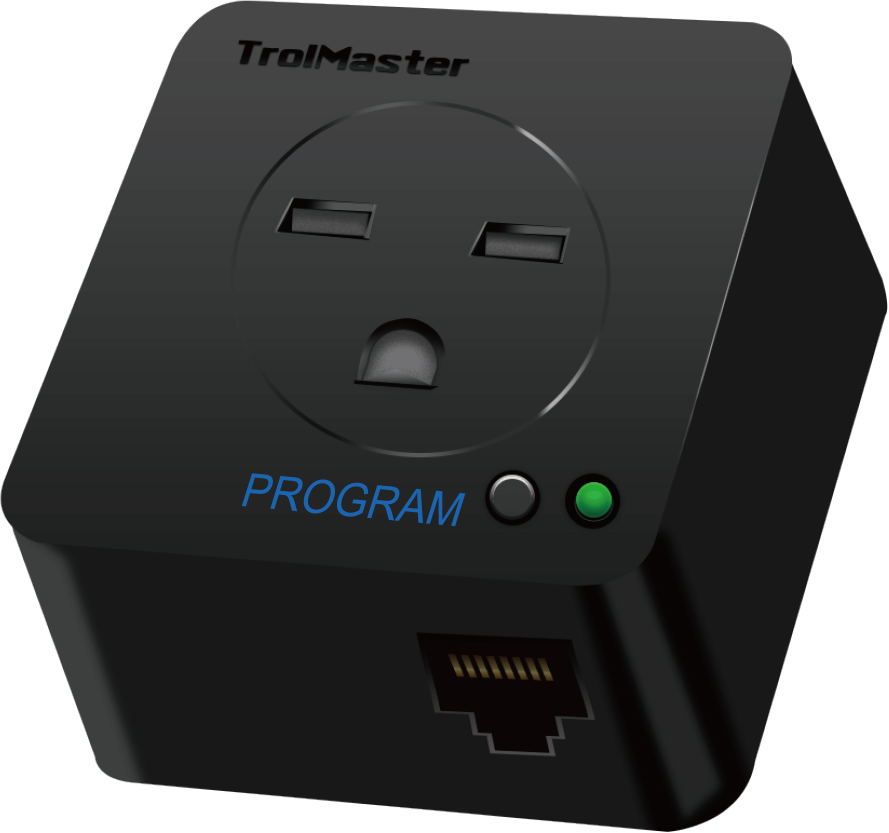

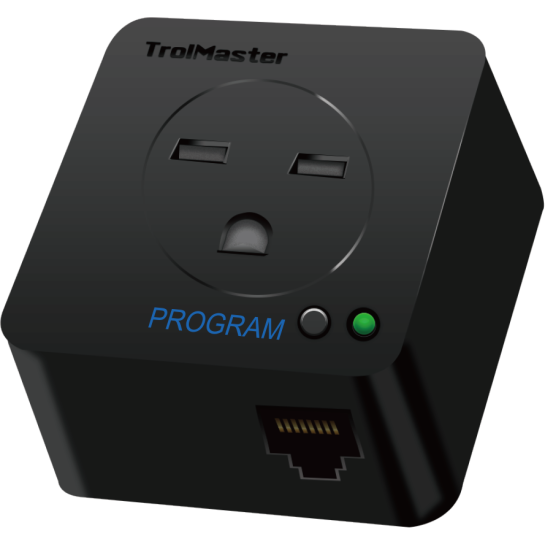

Trolmaster (DSP-2) 240V Program Device Station (DSP-2)

240V Program Device Station (DSP-2)

The TrolMaster DSP-2 program device module (timer module) works like a multi-function timer. The DSP-1 allows the user to easily connect any device that needs to be controlled by TIME to the Hydro-x. The DSP-2 allows control of any device under the world voltage standard (100-240 VAC, 50/60 Hz), up to 10-amps.

LED status:
* Blinking green FAST: If the LED is blinking quickly, that means the module has not been addressed to the controller OR that module does not have a good connection to the controller. *Pressing the small button on the module will address/link the module when first installed.
* Blinking green SLOW: If you see a slowly blinking green LED, that means the module is addressed and connected to the controller, and the module is currently turned OFF.
* SOLID green: If you see the LED is on solid (no blinking) that means the modules are addressed, connected and currently turned ON.
* Blinking red: If you see the LED change to blinking red, that means the module has been overloaded. To reset the overload unplug the module from the power.
* By pressing and holding the button on the DSP-2, users can manually override the module and turn it ON / OFF.

Features

•  LED Power Indicator
•  RJ12 Cable Socket
•  Addressing
•  Plug & Play

Package Content

•  1 x Device Station
•  1 x 16ft RJ12 Cable
•  1 x 4ft RJ12 Cable
•  1 x RJ12 T-Splitter

Specification

• Input Voltage: 100~240 VAC, 50/60Hz
• Output Current: 10A
• Output Voltage: 100~240 VAC, 50/60Hz
• Working Environments: Temperature 32-122°F, Humidity=90%
• Package Dimensions: 85mm(L) x 80mm(W) x 90mm(H)
• G.W. per pack: 0.34kgs
