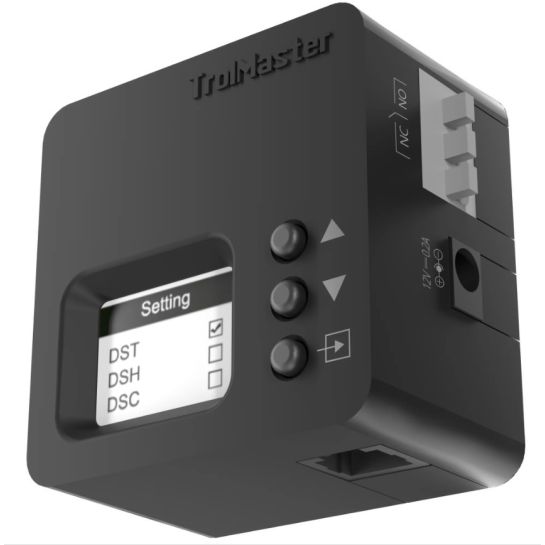

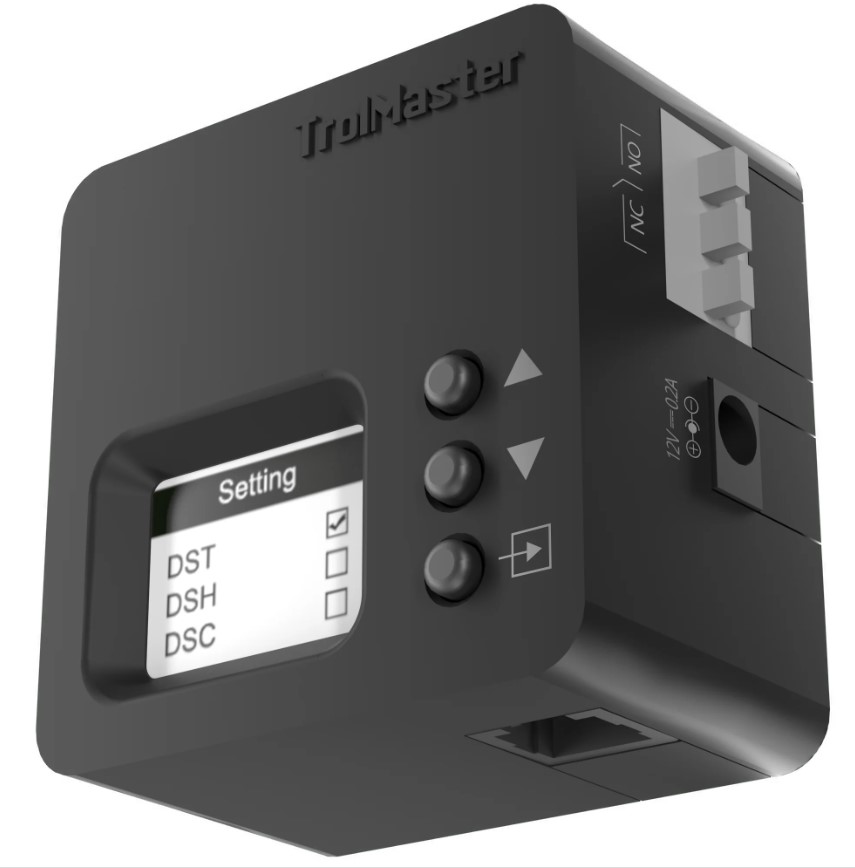

Trolmaster Dry Contact Station Single Pack w/ Cable Set (DSD-1)

The Trolmaster DSD-1 Dry-contact module provides a simple and flexible solution to who want to connect & control devices to the Hydro-X using a “dry-contact” or relay to activate the device. Some equipment requires either normally open or normally closed contact closure in order to activate the equipment. The DSD-1 is the product that you need to control those types of devices.

The DSD-1 can be configured to work as the other Trolmaster power modules work. The DSD-1 connects into the “devices” line on the Hydro-X and can be set to control an almost infinite number and types of devices such as:

• Lighting contactors
• Light Deprivation curtains
• Pump contactors
• Temperature devices
• Humidity devices
• CO2 devices

Features

• LCD Display, Easy Operation
• Seamless Connection with Hydro-X
• Multiple purposes assigment
• Plug & Play

Package Content

• 1 x Dry Contact Station DSD-1
• 1 x 16ft RJ12 Cable
• 1 x 4ft RJ12 Cable
• 1 x RJ12 T-Splitter

Package Specifications

• Input Voltage: 100~240VAC, 50/60Hz
• Output Current: 6A
• Dry Contact Output: 30VDC/250VAC,6A
• Working Environment: Temperature 32-122°F, Humidity=90%
• Packaging Dimensions: 85mm x 80mm x 90mm
