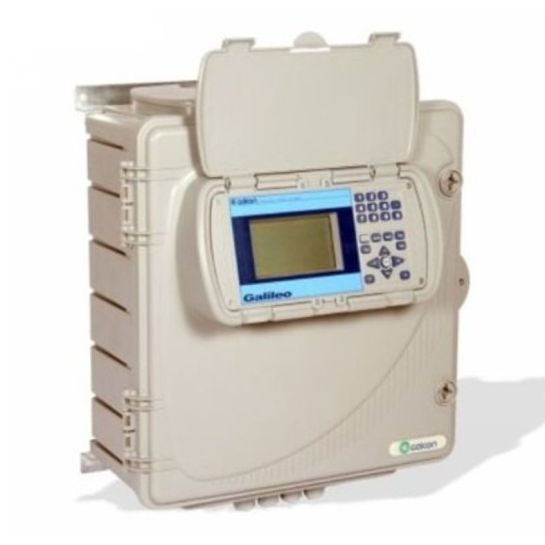

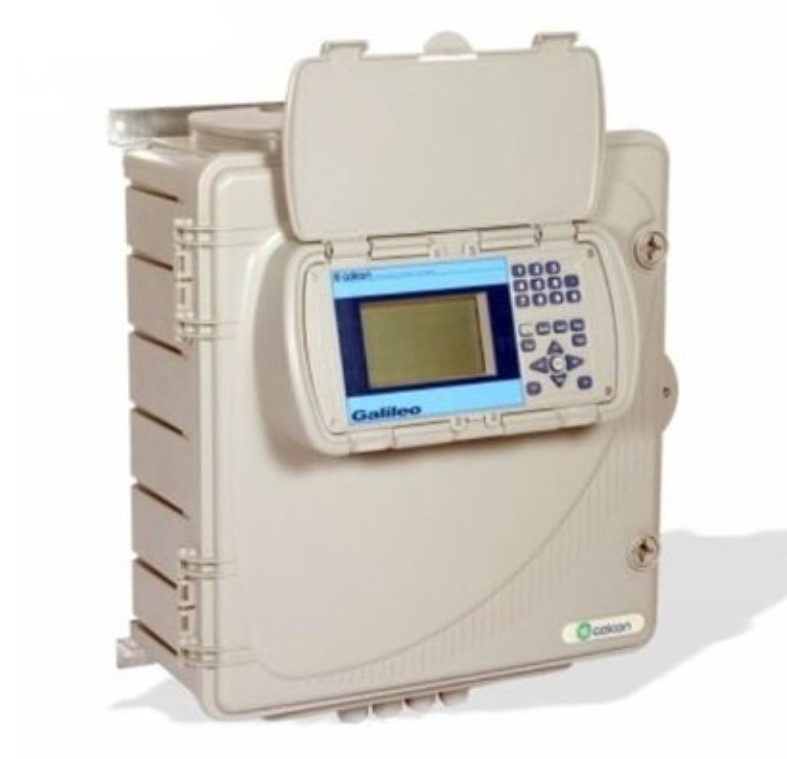

Galileo Cloud Irrigation Controller - 110V - WEX Cabinet - 16 Output - 8 Digital

GALILEO Greenhouse version

Greenhouse irrigation software combines an irrigation system with up to 4 climate control systems in the same controller. The irrigation system for greenhouses consists of one irrigation head with a fertilizer center that performs sophisticated fertilizer injection of up to 8 different fertilizers.

Climate Control

Differential management of 4 climate cells in one controller

• Indoor climate sensors – Temperature, humidity, CO₂
• Outdoor Climate Sensors – Wind speed and direction, radiation, rain, outside temperature, outside humidity
• Windows/curtains – Control of up to 10 windows including roof, at 10 different opening degrees
• Shading processes – For controlling long/short day processes
• Fans – Differential control of up to 4 groups of fans
• Thermal screens – Control up to 4 screens in 4 opening degrees
• Cooling system – Based on wet pads or misting system
• Heating system – Based on water or air, including a circuit heating program that allows PID control of the water temperature
• CO₂ enrichment – CO₂ generator control according to windows and ventilation control
• Air Circulation – Differential control up to 6 ventilators, according to the settings of temperature, humidity, CO₂ and more
• Spraying – Optimal spray spreading by means of window control, ventilation and cooling

Irrigation

• 100 Irrigation programs operating 4 generators and 16 valves in each program
• Up to 50 fertigation programs according to proportional fertigation, in order to obtain the required pH/EC
• Mist – Spraying time control, according to temperature and humidity conditions. Operates in relation to logical conditions, drainage monitoring and flushing of filters

Technical Features

AC model

1. I/O Cards:
   24 outputs, 16 analogue, 8/16 digital inputs/outputs
2. 220V/50Hz or 110V/60Hz
3. 24V outputs, 4-20mA analog inputs
4. Activation of radio end units (W, WEX, WEXX models)

DC model

1. I/O Cards:
   8 digital inputs / 8 outputs
2. 12V DC power supply, for operation of DC Latch solenoids
3. Activation of radio end units (W Model)
4. Connection to solar panel and rechargeable battery
