Diversitech Condensate Pump - Pro Series
Availability: In stock
Only %1 left
Details

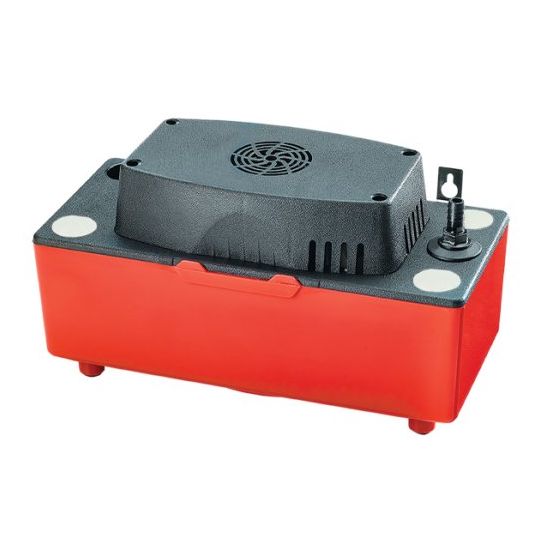

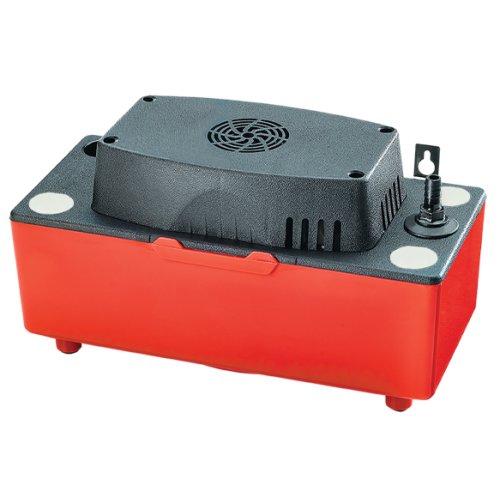

PRO Series 120V Condensate Pump, 22 ft Lift with Tubing
Item#: PROCP-22ST
The Asurity® PROCP-22ST Condensate Pump is a 120 volt pump for standard applications with 22 ft of lift. 20 ft of 3/8 in discharge tubing is included.
Product Features & Benefits:
- Built-in safety overflow switch
- Suitable for condensate up to 160° F
- Sturdy metal hang tabs
- Revisible deck for more installation options
- Includes removable check valve
- 4 inlet holes
- 20 ft of tubing included for easy installation
|
Specifications |
|
|
Includes |
Tubing |
| Volts | 115 |
| Hertz | 60 |
| Horsepower | 30-Jan |
| UL Listed | Yes |
| Discharge Line (In.) | 8-Mar |
| Floatless Sensor | No |
| GPH (Gal./Hr.) @ 10 Ft. Lift | 108 |
| High Level Switch | Yes |
| Input Type | NEMA 5-15 Plug |
| Max Condensate Temp. (Degrees) | 160°F |
| Max Flow Rate (GPH) | 132 |
| Max Lift Height (Ft.) | 22 |
| No. of Inlets | 4 |
| Self-Cleaning | No |
| Tank Capacity (Gal.) | 2-Jan |
| Variable Speed and Lift | No |
| Ducted or Ductless | Ducted |
| Color Code | N/A |
| Sound Level dB(A) @ 3 Ft. | N/A |
PRO Series 230V Condensate Pump, 22 ft Lift
Item#: PROCP-22S-230
The Asurity® PROCP-22S-230 Condensate Pump is a 230 volt pump for standard applications with 22 ft of lift.
Product Features & Benefits:
- Built-in safety overflow switch
- Suitable for condensate up to 160° F
- Sturdy metal hang tabs
- Revisible deck for more installation options
- Includes removable check valve
- 4 inlet holes
|
Specifications |
|
|
Includes |
N/A |
| Volts | 230 |
| Hertz | 60 |
| Horsepower | 1/30 |
| UL Listed | Yes |
| Amps | 1 |
| Discharge Line (In.) | 3/8 |
| Floatless Sensor | No |
| GPH (Gal./Hr.) @ 10 Ft. Lift | 108 |
| High Level Switch | Yes |
| Input Type | NEMA 6-15 Plug |
| Max Condensate Temp. (Degrees) | 160°F |
| Max Flow Rate (GPH) | 132 |
| Max Lift Height (Ft.) | 22 |
| No. of Inlets | 4 |
| Self-Cleaning | No |
| Tank Capacity (Gal.) | 1/2 |
| Variable Speed and Lift | No |
| Ducted or Ductless | Ducted |
| Color Code | N/A |
| Sound Level dB(A) @ 3 Ft. | N/A |
