Aquagation RO System Solenoid Valve - 2-Way Normally Closed - Class H DIN Connection - Strain Relief Connector - EPDM Seals - 240V
Availability: In stock
Only %1 left
Currently, there are no documents available for this product.
-

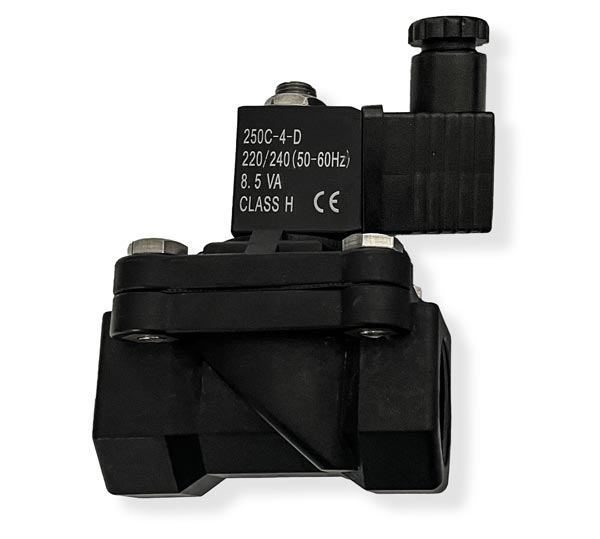

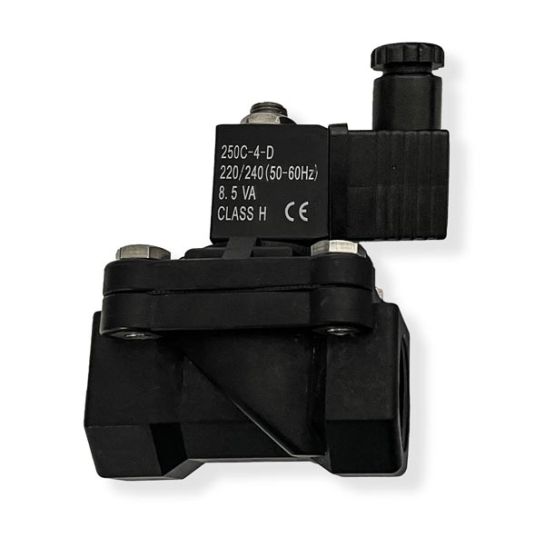

WAQ770 Aquagation RO System Solenoid Valve - 2-Way Normally Closed - Class H DIN Connection - Strain Relief Connector - EPDM Seals - 240V - 3/4-Inch FPT x 3/4-Inch FPT -

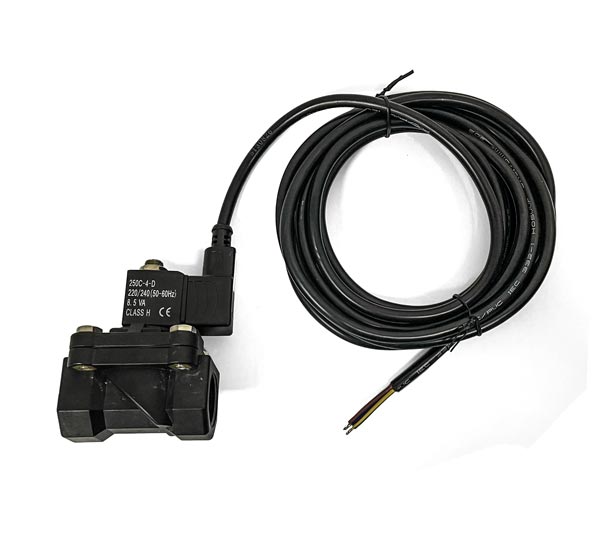

WAQ771 Aquagation RO System Solenoid Valve - 2-Way Normally Closed - Class H DIN Connection - Strain Relief Connector - EPDM Seals - 240V - 3/4-Inch FPT x 3/4-Inch FPT - 3 Meter Wired Cord
Details
Specifications
- Height
- 3 5/8″
- Width
- 2 1/4″
- Length
- 2 3/4″
- Description
- The 875 is a 3/4" NPT diaphragm operated solenoid valve available as standard 2-way normally closed. Designed for a maximum recommended flow rate of 20 gallons per minute. The 875 is available with standard EDPM seals and optional Viton rubber seals for chemical applications.
Note: The solenoids are available in all listed voltages and types.
Materials
| Seals | Nitrile (Standard), EPDM, Viton |
|---|---|
| Internal Components | Stainless Steel (300 and 400 series) |
| Valve Body Material | Noryl GTX-830 body and elastomer type |
| Port Size | 3/4″ NPT female |
| Operating Temperature | to 180°F (82°C) |
Electrical
| Voltages Available | AC 50/60 Hz 24, 120 or 240 volts DC 12, or 24 volts |
|---|---|
| Power Consumption | AC-5 watts, DC-6 watts |
| Coil Construction | Class A (105°C) |
